Sketcher
Sketcher as the name suggests sketcher is a molding part. In sketch we do 2D design. We use sketcher for 2d design. A sketch is a 2d design profile that is used to crated 3d modules to begin creating 3d models are typically start with a 2d sketch. Sketcher is created in the sketcher workbench using wire-frame elements. The sketch can be a base profile can be parameterized by constraints. The sketcher is a 2D dimension.
Workspace:-the elements created within the sketchers are exclusively 2D wire-frame elements. Back to the 3D space the element created in the sketcher are seen as a single entity sketch.

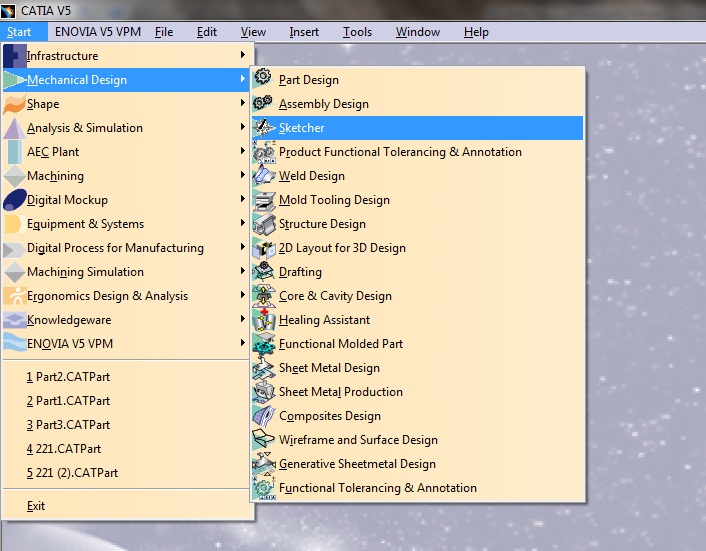

1. Click start- mechanical design-sketcher
 |
| mechanical_part_sketcher |
Example Design
 |
| Sketcher_Drawing_Ex.1 |
 |
| Sketcher_Drawing_Ex.2 |
 |
| Sketcher_Drawing_Ex.3 |
 |
| Sketcher_Drawing_Ex.4 |
This is dummy text. It is not meant to be read. Accordingly, it is difficult to figure out when to end it. But then, this is dummy text. It is not meant to be read. Period.
