Revolved surfaces
Menu: Insert > Surface > Revolve
Toolbar: Surface > Revolve
Revolved surfaces are created by revolving a profile about a revolution axis. To create
a revolved surface, first sketch the profile and revolution axis around which the profile is
to be revolved. Choose the Revolve button from the Surfaces toolbar.
 |
| Revolution_Surface_Definition_dialog_box |
Select the profile to be revolved. By default, the axis you sketched, with the profile in the
sketcher workbench, is selected as the axis of revolution. You can also select some other axis

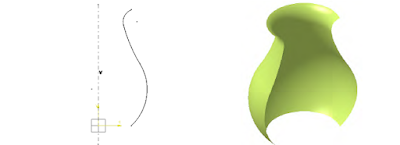

of revolution. Now, set the required angular limits in the Angle spinners. Figure 9-11 shows
a profile and an axis of revolution to create the revolve surface.
 |
| The_profile_and_revolution_axis_urface_revolved_through_an_angle_of |
