What is Tolerance

Tolerance: - The difference between the maximum limit and minimum limit given above the basic size of a job is called tolerance.

Tolerance refers to the accuracy of the created job or part tolerance is never negative. It is always positive.

Tolerance Type

Unilateral tolerance.

Bilateral tolerance

Fundamental tolerance

1.Unilateral tolerance:-In this type of tolerance, there is only one, deviation from basic size of a job and the deviation on the other side is zero.

2.Bilateral tolerance:-In this type of tolerance the deviation in the basic size of a job is both up and down.

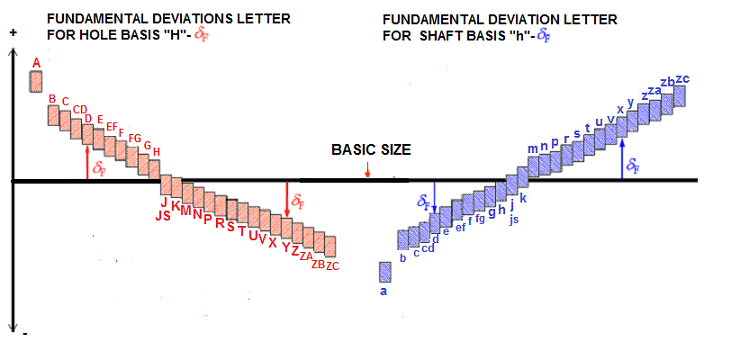

3.Fundamental tolerance:-The number symbol represents the zone of tolerance with respect to the grade of manufacture. This symbol is responsible fr the grade of manufacturing designed by international grad it, and the tolerance represent by the number symbol is known as fundamental tolerance.
